Space-Ray
Industry-leading infrared radiant gas heaters for commercial, industrial, residential, and hospitality applications — manufactured in North Carolina since 1949.
Request a Quote Visit spaceray.com →Reliable Infrared Heating Since 1949
Space-Ray is an industry-leading manufacturer of high-quality infrared radiant gas heaters. With over 75 years of field experience, Space-Ray delivers smart, efficient, and reliable heating solutions that heat objects and people directly — not the air.
Unlike forced-air systems, Space-Ray’s top-down radiant approach reduces stratification, keeps heat where workers are located, and delivers dramatic energy savings — up to 30–50% over conventional heating systems, and up to 70% in very large buildings.
CEE supplies and supports Space-Ray heaters for commercial, industrial, outdoor hospitality, residential garage, and specialty heating applications throughout the region.
- Heats objects and people directly — not wasted on ceiling air
- 30–50% energy savings vs. conventional heating
- Up to 70% savings in very large buildings
- Manufactured in North Carolina since 1949
- Natural gas and propane models available
- CSA Design Certified across product lines
- Free CompuHeat analysis available for sizing
- 100+ configurations across tube heater lines
ForceRED® Series — Next-Gen Tube Heaters
The ForceRED line delivers 30% more radiant output and 30% more fuel efficiency than standard tube/reflector IR heaters. Maximum radiant energy to floor level means faster recovery when doors open and close.

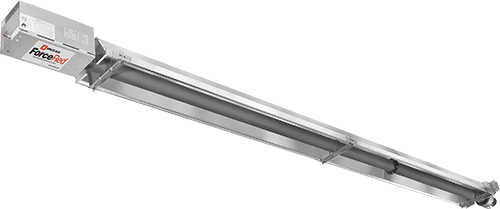

ForceRED® NXS Series
Pull-Through
Pull-through (negative pressure) system with double reflectors for maximum radiant efficiency. Designed specifically for horizontal mounting to maximize radiant output at floor level. Ideal for complete building heating applications.

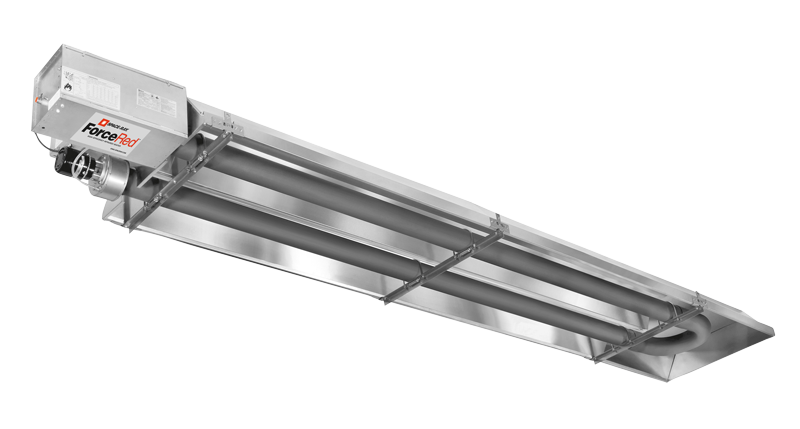

ForceRED® NXU Series
Pull-Through
Next-generation pull-through heater delivering 30% more radiant output and 30% fuel efficiency over standard models. Extensive use of turbulators for maximum thermal efficiency. Ideal for both spot/area heating and complete building applications.
Low-Intensity Tube Heaters
Space-Ray’s broad tube heater lineup offers 19 BTU sizes and 100+ configurations across pull-through and push-through systems — from economical field-assembly models to premium pre-assembled units.

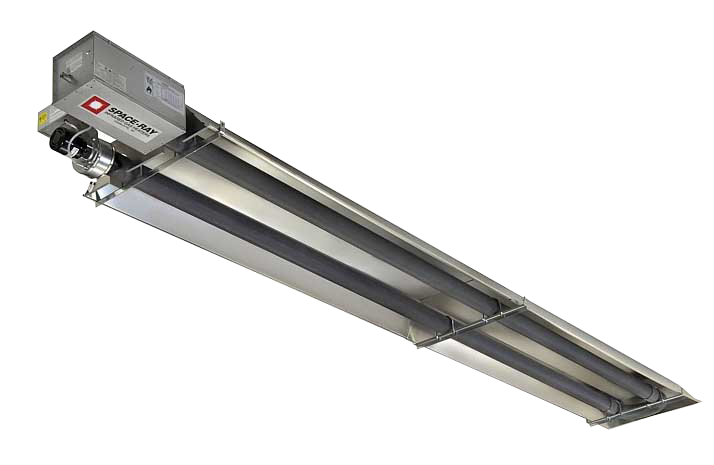

PTS / PTU Series®
Push-Through
Push-through (positive pressure) system with 8 BTU sizes and 100+ configurations. The enclosed burner box runs whisper-quiet at under 47 dB — ideal for car washes, hot yoga, churches, and high-humidity environments. Stainless steel washdown option rated to 3,500 PSI.
LTS Series
Pull-ThroughFactory pre-assembled in 10-foot sections for fast, low-cost installation. Pull-through negative pressure system with 19 BTU sizes and 100+ configurations. Calorized aluminized steel emitter tubes for enhanced radiant output and corrosion resistance. Up to 75 ft. sidewall venting.
LTU Series
Pull-ThroughPull-through system offering 19 BTU sizes with factory pre-assembled sections for easy installation. Highly efficient aluminum reflectors provide more uniform floor-level radiant energy distribution. Up to 75 ft. sidewall venting capability with outside combustion air ducting.

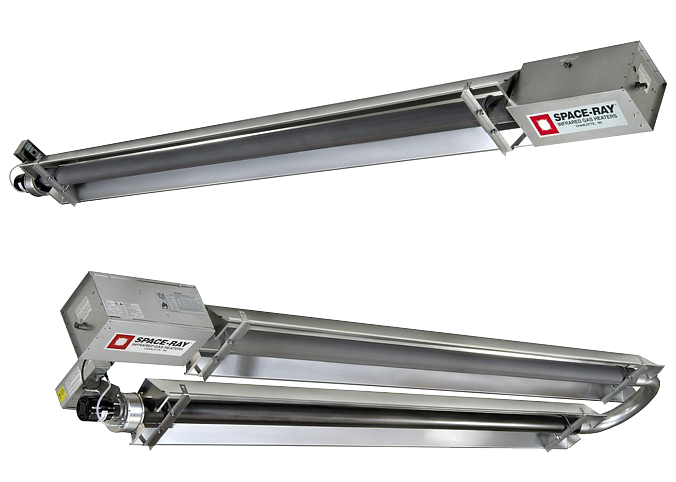

ETS / ETU Series
Pull-Through
Economically priced pull-through series with 19 BTU sizes and 100+ configurations. Provides excellent venting flexibility and outside combustion air ducting capability. Available as standard construction or ALC option for harsh environments. Requires field assembly.
Ceramic Infrared Heaters
Spot and area heating without requiring electricity — ideal for loose construction sites, drafty buildings, and locations where gas is available but electrical infrastructure is limited.

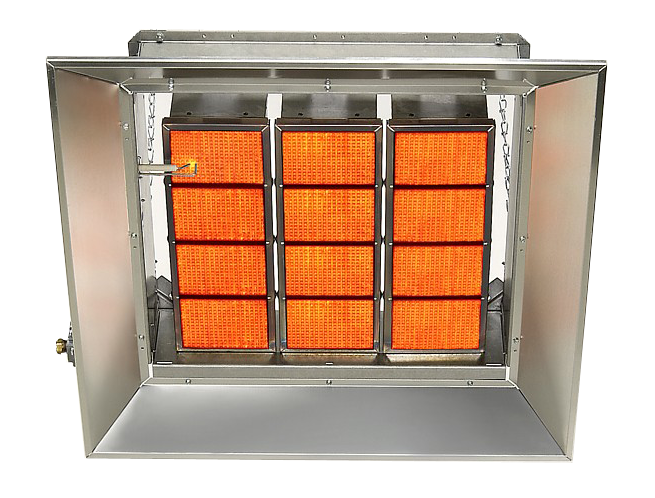

DK Series
Ceramic
14 models from 30,000 to 160,000 BTU/hr with special honeycomb design tiles for increased radiant output. Corrosion-resistant aluminized steel body with highly efficient aluminum reflectors. Angle mount up to 35°. Compact enough to ship by UPS — perfect for replacement of existing ceramic heaters.

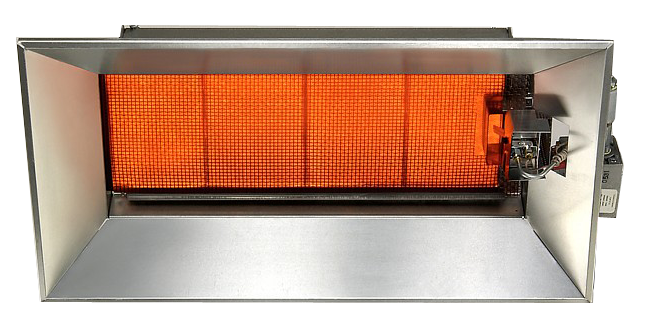

RSCA Series
Premium Ceramic
The highest quality ceramic infrared heater in the industry. Features iron oxide coated tiles (+13% emissivity), cast iron burner, and Incoloy 800 Reverberatory Screen for a second radiating surface. 10-year warranty on body, emitter tiles, and cast iron burner. Angle mount up to 45°.
Outdoor, Residential & Garage Heaters
From wind-resistant patio heaters to garage and workshop units — Space-Ray has compact, certified heaters for residential and light commercial use.
Wind Blocker® Series New
Indoor / Outdoor
Tinted ceramic glass front provides wind resistance up to 40 mph — totally enclosed combustion pattern maintains consistent output in exposed outdoor environments. Rain and snow rated. WB35 (35,000 BTU/hr) or WB50 (50,000 BTU/hr). Angle mount up to 60°, clearances as low as 10″ with optional shield.

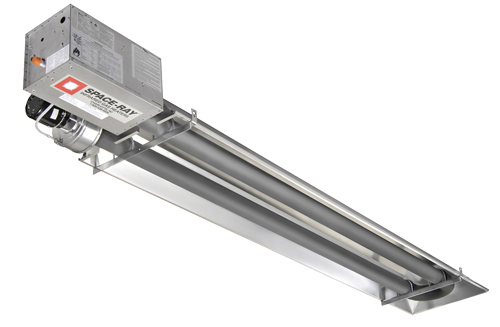

Cold Blocker® CB Series
Residential & Commercial
U-tube design for uniform energy distribution across 4 input sizes from 20,000 to 50,000 BTU/hr. Compact enough to install at 6′ to 16′ above floor — certified for both residential and commercial installations. Optional outdoor kit protects against rain and snow. Ideal for garages, workshops, patios, and greenhouses.
Restaurant & Hospitality Heaters
Keep outdoor diners and golf range guests comfortable year-round. Space-Ray’s hospitality line combines performance with aesthetics — decorative designs that blend into upscale environments.
PGR Series
HospitalitySpecifically designed for golf range and outdoor hospitality applications. Seven input sizes from 40,000 to 125,000 BTU/hr. Calorized steel emitter tubes for higher radiant efficiency and corrosion resistance. Decorative grill for aesthetically pleasing appearance. Enclosed blower for quiet operation. Vented or unvented.
Wind Blocker® Restaurant Series
Patio & RestaurantThe Wind Blocker adapted specifically for restaurant patios and outdoor hospitality spaces. Tinted ceramic glass front for a premium appearance with 40 mph wind resistance. Indoor or outdoor rated — rain and snow proof. Two-stage remote control for instant comfort adjustment from 24,000 to 50,000 BTU/hr.
Spaces We Heat
Need Space-Ray Heaters?
CEE is your local Space-Ray supplier for commercial, industrial, outdoor, and residential infrared heating solutions throughout the region.
Talk to a Specialist
