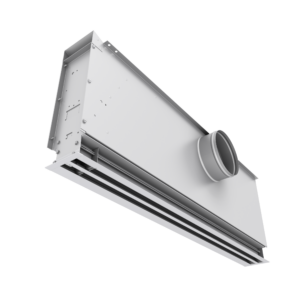

Linear Therma-Fuser (TL)

• Model: TL — Linear Therma-Fuser diffuser
• Types: TL-C (VAV cooling only), TL-CW (VAV cooling with warm-up), TL-D (manual blades), TL-RAD (return air, ducted), TL-RAP (return air, plenum)
• Nominal Lengths: 24″, 36″, 48″, 60″ (metric lengths available)
• Slots: 1-slot, 2-slot, or 4-slot
• Blow Direction: 1-way or 2-way linear

• Built-in thermostat/actuator senses average room air via an induction chamber and venturi at the diffuser end.
• Wax-filled actuator expands on a rise in temperature to open blades; contracts as the room cools to close blades.
• In TL-CW models, a separate changeover thermostat senses supply air — supply above 80 °F opens blades for constant-volume heating.
• Properly applied TL units maintain room temperature within about ±1.5 °F (0.9 °C) of the selected setpoint.

• Sleek, slim linear profile with extruded aluminum construction and powder-coated visible surfaces.
• Precise damper and diffusion geometry for strong Coanda effect and no dumping at turndown.
• Continuous room-air sampling over the thermostat for accurate control across the full VAV range.
• Thermally powered “green VAV” — no local electrical or pneumatic power required.
• Low maintenance with a 10-year manufacturer warranty.

• Remote Adjust: DA1 or DA1M (1–2 slot), DA2 or DA2M (4-slot) Digital Wall Adjuster; WA1M / WA2M Wireless Wall Adjuster
• Insulation: I — internal ½″ fiber-free foam lining
• Sensor: AS — output for DSMC or 3rd-party control/monitoring
• Ends: TEG (reveal) or MP (thin tile) end treatments

• Frames: AC-TL-HCF (hard ceiling frame), AC-TL-TEG1 (tegular 9/16″ T-bar, used with TEG end angles)

TL diffusers are supplied as complete linear VAV terminals with integrated thermostat/actuator and venturi induction. They are intended to replace portions of ceiling panels and are not designed to straddle T-bar grid.
